Lazarus on the Raspberry Pi

[EDIT: The build steps detailed in this post will no-longer work with current (10/07/14) versions of Raspbian and Free Pascal. Please see the more recent post here for a newer set of build instructions for Free Pascal 2.7.1 and here for Free Pascal 3.1.1 with Lazarus 1.7]

I have been investigating the use of Free Pascal and Lazarus on the Raspberry Pi. The Pi is a minimal, low cost, ARM based computer, designed primarily for educational uses. As a Pascal advocate, I would love to see a modern Pascal compiler made widely available on a platform like this.

The official operating system for the Pi is called Raspbian which, as it’s name suggests, is a derivative of Debian Linux. Free Pascal and Lazarus packages are available on Debian, so I wanted to see if they had successfully transferred to Raspbian in a usable form.

I have one of the new Raspberry Pi Model B’s that has 512Mb of RAM and I have been using it with the current Raspbian image (2012-10-28). After spending a little while getting to grips with Raspbian, I was able to progress to the business of testing Free Pascal. The good news is that the standard Debian packaging commands worked a treat:

sudo apt-get update
sudo apt-get upgrade
sudo apt-get install fpc
sudo apt-get install lazarus

The only snag from a visibility point of view is that there is no automatic integration of Lazarus into the LXDE menu. From the command-line though, ‘fpc’ will invoke the compiler and ‘lazarus’ the GTK2 based IDE. However, as with Debian, the versions of the available packages are a little behind the current releases. On my main Kubuntu system, I habitually build Free Pascal and Lazarus from source, using Subversion to obtain the latest changes. This process requires a seed compiler, which in this case, can easily be supplied from the default repository.

So I started again with a fresh Raspbian SD card, but this time, I only installed FPC from the repository. Free Pascal additionally requires the GNU build tools and fortunately these are already installed in Raspbian, so I only had to add Subversion before I could attempt to use my usual build process on the Pi with a few of the options tweaked for ARM output:

sudo apt-get install subversion

Whilst researching this I have found that others have already attempted this with varying degrees of success. Common problems encountered seem to be caused by running out of memory, or card storage space during the build process. Indeed, I hit both issues even with the Model B’s 512Mb RAM. In the case of RAM usage, I had to reduce the amount of RAM dedicated to the GPU from 128Mb to 64MB. I have seen reports for Model A Pi’s where this needed to be reduced to 16Mb to avoid problems. I also ran out of space on a 4Gb SD card and had to swap to an 8Gb one to provide enough head-room.

After a couple of hours solid processing I had a working build of Free Pascal 2.7.1 with ARM hard float support and Lazarus 1.1. For thoses interested in repeating this process you can download the scripts here: FPC Build Script and Lazarus Build Script. It is worth pointing out that the two scripts behave in slightly different ways. The Free Pascal process is more elaborate for two reasons. Firstly, it always makes a temporary working copy to perform the build, this is a brute force approach to preventing changes over time causing build issues for the compiler or runtime libraries (admittedly at the cost of build time). Secondly, it also performs a full install to the system to superceed the Raspbian 2.6.0 seed compiler. This means that it becomes the new default ‘fpc’ system command. The Lazarus script, by contrast, is a much simpler affair, building its binary in the subversion working folder. I usually run it from this personal folder, from which I can make changes such as installing additional packages, without having to use sudo permissions.

Now I wanted to evaluate the capability of this new setup. Firstly I built several of the standard example programs supplied with Lazarus. All of the ones I tested executed without problems and they looked pretty good on the LXDE desktop. It is worth commenting on the fact that the general operation feels sluggish compared to an Intel based system. However, it is not that slow that you would find it unusable and I have seen Eclipse run slower on a much more capable PC!

Much of my work with Lazarus involves creating graphical output, so I wanted to see how it coped with using some of the graphics libraries available. The built in FPGraphics and LCL TBitmap work without issue, but are often much slower than more specialised options. Next I tried the Lazarus OpenGL package. This unfortunately, did not compile. I will investigate this further and it will probably become the subject of my next post on the Raspberry Pi as the Pi has very good hardware support for OpenGL. I also tried Graphics32 and BGRABitmap which are both highly optimised software renderers for 32bit raster images. Unfortunately, both of them seem to have too many low-level Intel dependencies to port easily to an ARM based system.

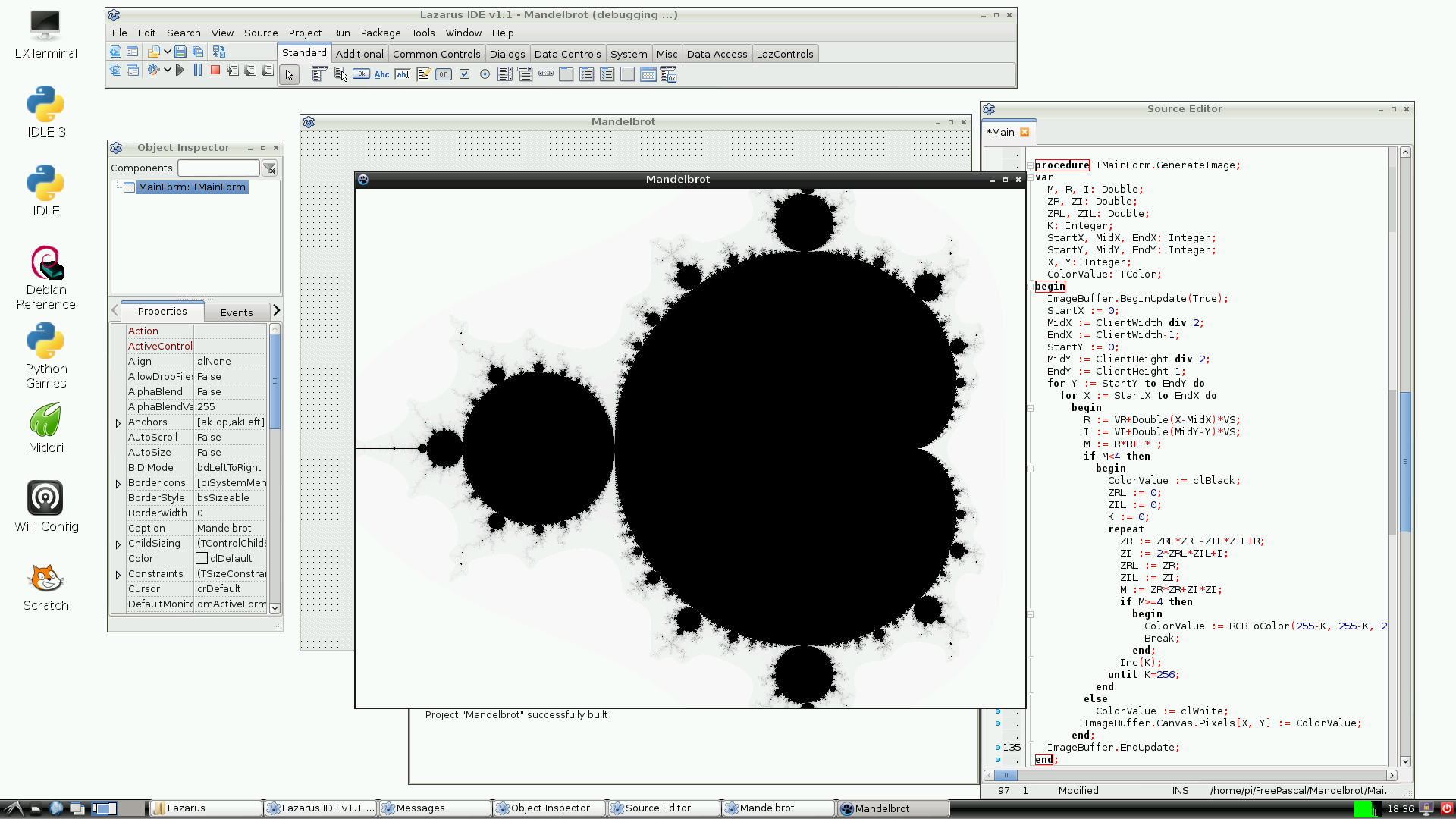

To test the system’s graphics capability, I have written a small Mandelbrot set renderer, as shown below, (Source Code). This uses the simplest form of TCanvas.Pixels method for writing the image. This project takes around 2 seconds to generate the image shown below on my Intel i7 based system, but nearly 2 minutes on the Pi! I haven’t performed any detailed bench marking yet, but I will investigate this further.

There is a very interesting Mandelbrot set program called ‘triangle2.c’ supplied on the Raspbian SD image in the /opt/vc/src/hello_pi/ folder. This is written in C and uses OpenGL and fragment shaders to achieve very fast access to the Broadcom GPU hardware present on the Raspberry Pi. It produces stunning results, calculating a full screen Mandelbrot set with overlaid Julia set in real-time. So there should be plenty of scope to reduce my program’s 2 minute render times! It will be especially interesting to see how fast a pure ARM CPU program can operate before having to resort to direct GPU calls for further improvements.

One last comment about Free Pascal is to mention that it can be compiled as a cross compiler, meaning it can be an Intel based program that I can run on my desktop system, but generate ARM binary output for execution on the Pi. Whilst running a native Lazarus desktop on the Pi is perfectly feasible (in fact, it would be a very good platform for introducing people to visual programming in Pascal), large projects would certainly feel more comfortable when worked on with a much faster CPU, especially whilst compiling larger projects and I will definitely be looking into this over the coming weeks.

14 thoughts on “Lazarus on the Raspberry Pi

  1. Pingback: Odd Lots – Jeff Duntemann's Contrapositive Diary

  2. Regarding graphics. Open GL and Glesv2 is now enabled in 2.7.1.
    Alas it compiles for softfloat. There are some issues to get it working with the GPU, but it is well worth the effort:
    1. bmc_host needs to be loaded and initialized first, i.e /opt/vc/lib/ Put that path one in your ld config.
    2. In Glesv2.pas, the order in which the library’s libGLESv2 and libEGL are loaded should be reversed.
    3. You don’t need X, so for speed adapt the examples to create an EGL window to use with GLESv2

    I am currently struggling to get the header translations in production quality, but when done I will publish a link on the raspberry pi forum. I have verification code for all libraries working. Biggest issues are with disp_manx.
    There’s a nice openvg lib that works under FPC after a simple h2pas by rjstarts on the forum that is pretty powerfull and simplefor 2D work and uses the GPU. Bleeding fast ! Again, code follows soon through the forum. Thanks for the build scripts. It was a good pointer to start my own. After you build the compiler, copy ppcarm to temp, use that as bootstrap and and OPT=’ -CpARMV6Z -CaEABIHF -CfVFPV2′ and do a rebuild after svn up. There are some major improvements for arm as from today in trunk. (armv6z seems to be the most compatible with armv6l according to wikipedia arm, can you confirm I am not mistaken?)

    • Thanks for the detailed feedback, as you can tell from the lack of recent posts, I have not been able to look at the Pi for a while. I am really glad to hear that you are working on the OpenGL units though, as having decent ones will be essential to getting the best out of FreePascal on this platform.

  3. The script needs a fair bit of tweaking because it depends on a few folders that are not created by default, but even after you do that and uncomment out the first run subversion get,

    when it gets to the make step, all I get is

    make: *** No rule to make target `all’. Stop.
    make: *** No rule to make target `install’. Stop.
    make: *** No rule to make target `install’. Stop.

    They seem to be in the makefile, so I am confused. Any thoughts?

    • I’ve not looked at this for a while, but I would guess that the FreePascal make process has been altered. I heard that the Raspian builds for Free Pascal and Lazarus are more up to date than when I wrote this post, so you are probably best to go with the apt-get approach now.

  4. Pingback: Freepascal on the Raspberry – Digital Home Server

  5. Pingback:

  6. Pingback: FreePascal 2.7.1 on Raspberry Pi | Michell Computing News

  7. Hi.

    Thanks for your Scripts. Could you help me, please?
    After script:
    # Build the compiler.
    make all OPT=’-gl -O3p3′ -j 8 FPMAKEOPT=”-T 8″ FPC=/usr/lib/fpc/2.6.0/ppcarm

    The error message appears:
    Makefile:2790: *** The only supported starting compiler version is 2.6.4. You are trying to build with 2.6.0.

    My previous version is: Lazarus IDE and
    2.6.0 FPC Version

    • Hi.

      I am sorry to inform that also Lazarus update scrip not work .
      make clean all FPMAKEOPT=”-T 8″ generated error:

      (3104) Compiling lazutf8sysutils.pas
      /home/pi/FreePascal/Lazarus/components/lazutils/lazutf8sysutils.pas(104,16) Error: (5000) Identifier not found “clock_gettime”

      /home/pi/FreePascal/Lazarus/components/lazutils/lazutf8sysutils.pas(104,32) Error: (5000) Identifier not found “CLOCK_MONOTONIC”

      lazutf8sysutils.pas(133) Fatal: (10026) There were 2 errors compiling module, stopping
      Fatal: (1018) Compilation aborted
      Makefile:2299: recipe for target ‘lazutils.ppu’ failed

      • You are right this script does not work with the current versions of Free Pascal (please note the edit at the start of the article!). You must start with the current official release of FPC, currently 2.6.4. This must be installed first.

        Lazarus can then be built with make clean all, no additional options are required now.
